Sunday, 31 March 2019

TWITCH Bench Display with GetInTouch

As some of you may know, I have a Twitch Channel where I hang out when I'm working in the Lab. During one of my streams I met a couple of really nice German guys who are the creators of the GetInTouch extension for Twitch. I was very impressed with the Arduino Library they created that can easily connect an Arduino to your Twitch channel.

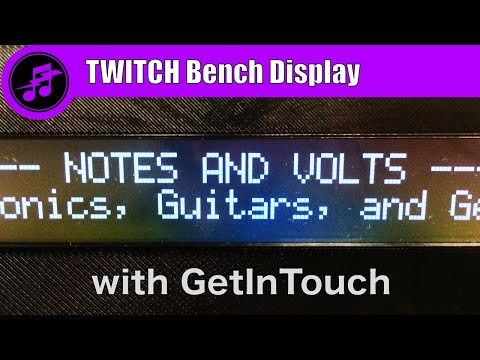

After playing around for a while I came up with a LCD Bench Display that allows viewers to send messages during the stream. As a bonus, it plays some preset messages when it's not in use. Free advertising! So in this episode I'll show you how to build your own.


You can download the code and schematic HERE
Download the 3D printable enclosure at my THINGIVERSE page

Parts List: (With Amazon Links)


1 - LCD Display (40x2 - 5 Volt - No Header)
1 - Arduino Nano (With headers)
1 - Adafruit Perma-Proto Half-Sized PCB
1 - Piezoelectric Speaker (30mm diameter or less - NO Driver Circuit)
1 - Trimmer Potentiometer - 10K ohm
1 - 330 Ohm Resistor
1 - 100 Ohm Resistor

12 - M3 x 6mm Screws - (Plastic Black)
6 - M3 x 10mm Standoffs - (Plastic Black)

Wire - (30 AWG - Stranded)
Wire - (22 AWG - Solid)
